HCW Gate Barrier DC Motor 24V Security Universal Remote Control for Parking Lot System
Product Introduction
This advanced boom barrier combines precision engineering with industrial-grade durability, featuring a compact DC brushless motor (24V) for high-speed, low-noise lifting of 1-6m octagonal arms. Its aluminum alloy die-cast structure ensures heat dissipation and mechanical stability, ideal for high-traffic environments. The barrier gate integrates smart digital controls, supporting RS232/485 communication and unattended auto-closing, while an industrial controller simplifies parameter adjustments via a user-friendly menu. Enhanced safety includes radar-based anti-crush detection and voltage-independent operation. With a traffic light indicator (red/green signals) and 10-million-cycle lifespan, this boom barrier optimizes parking management efficiency. Customizable interfaces and remote compatibility make the barrier gate a versatile, long-term security solution.
Specification
| Brand name | HCW |
| Product model | CW 203 |
| Housing | Cold rolled steel |
| Input voltage | 24V |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Remote control | Frequency 430 |
| Motor type | DC Brushless |
| Operation speed | 3-6S adjustable |
| Enclosure size | 340*280*1045mm |
| Working temperature | -30°C to +70°C |
| Hardware Protection | Over current/voltage/short circuit protection |
| Arm type | Straight/Folding/Fence/LED Foam/Telescopic arms |
Advantages
1.Smart Monitoring & Control: The barrier gate employs digital control technology for real-time operation tracking, enabling intelligent management via wireless remote or manual inputs, ensuring seamless boom barrier functionality.

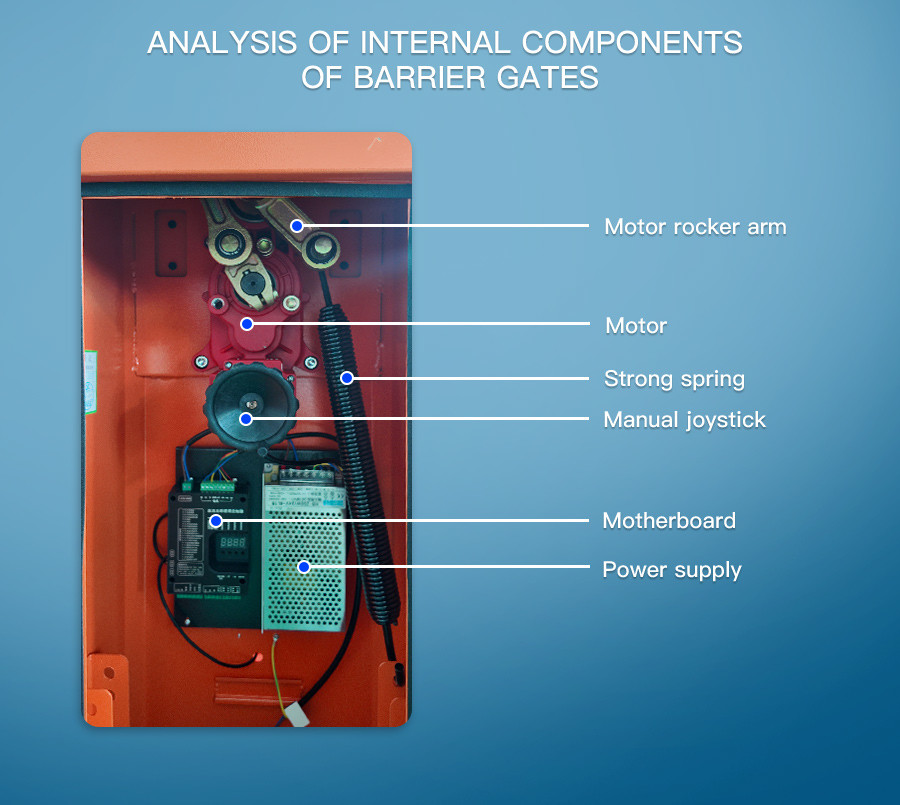

2.Integrated Structural Design: Featuring a one-piece movement system, the barrier gate integrates the frame, reducer, and transmission, minimizing vibration and maximizing operational precision for safe, reliable performance.
3.Durable Aesthetic Finish: The boom barrier’s chassis uses electrostatic high-temperature baking paint (180°C–250°C), offering corrosion resistance, fade-proof durability, and easy maintenance with a sleek, timeless appearance.
4.Adaptive Safety Features: With tension spring response and adjustable rod lengths, the barrier gate ensures high safety and user-friendly adaptability, supporting modernized, human-centric operation.
5.Expandable Anti-Crush Systems: The boom barrier supports customizable safety enhancements, including loop detector, pressure waves, and infrared detectors, providing multi-layered anti-smashing protection.
|
|
